Sharpcut Standard Flatbed Available Sizes

SX1717 (5.5'x5.5')

bed-size-5x5

SX1732 (5.5'x10.5')

bed-size-5x10

SX3216 (10'X5')

bed-size-10x5

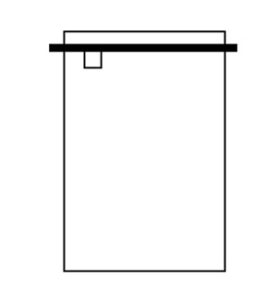

SX3232 (10'X10')

MODELSSX1717SX1732SX3216SX3232
Working Area67” x 67”67” x126”126” x 64”126” x 126”
Machine Dimensions98” x 90”98” x148”158” x 90”158” x 150”
Tool HeadTriple Interchangeable Tool HeadTriple Interchangeable Tool HeadTriple Interchangeable Tool HeadTriple Interchangeable Tool Head
CameraIndustrial 3.1MpixelIndustrial 3.1MpixelIndustrial 3.1MpixelIndustrial 3.1Mpixel
Vacuum System4 Zone (5 kWatt)6 Zone (7.5 kWatt)6 Zone (7.5 kWatt)16 Zone (20 kWatt)
Rapid Speed50 IPS/76 m/min80 IPS/122 m/min41.6 IPS/63.5 m/min41.6 IPS/63.5 m/min
Acceleration.86 G.86 G.52 G.52 G
Bridge Clearance4.0”4.0”4.0”4.0”
Max. Cutting Thickness2.5”2.5”2.5”2.5”
Recommended Floor Space14' x 14'14' x18'19' x 14'19' x 19'
Machine Weight3,000 lbs3,500 lbs4,000 lbs5,400 lbs

SX1717 (5.5'x5.5')

MODELSSX1717
Working Area67” x 67”
Machine Dimensions98” x 90”
Tool HeadTriple Interchangeable Tool Head
CameraIndustrial 3.1Mpixel
Vacuum System4 Zone (5 kWatt)
Rapid Speed50 IPS/76 m/min
Acceleration.86 G
Bridge Clearance4.0”
Max. Cutting Thickness2.5”
Recommended Floor Space14' x 14'
Machine Weight3,000 lbs

SX1732 (5.5'x10.5')

bed-size-5x10
MODELSSX1732
Working Area67” x126”
Machine Dimensions98” x148”
Tool HeadTriple Interchangeable Tool Head
CameraIndustrial 3.1Mpixel
Vacuum System6 Zone (7.5 kWatt)
Rapid Speed80 IPS/122 m/min
Acceleration.86 G
Bridge Clearance4.0”
Max. Cutting Thickness2.5”
Recommended Floor Space14' x18'
Machine Weight3,500 lbs

SX3216 (10'X5')

MODELSSX3216
Working Area126” x 64”
Machine Dimensions158” x 90”
Tool HeadTriple Interchangeable Tool Head
CameraIndustrial 3.1Mpixel
Vacuum System6 Zone (7.5 kWatt)
Rapid Speed41.6 IPS/63.5 m/min
Acceleration.52 G
Bridge Clearance4.0”
Max. Cutting Thickness2.5”
Recommended Floor Space19' x 14'
Machine Weight4,000 lbs

SX3232 (10'X10')

MODELSSX3232
Working Area126” x 126”
Machine Dimensions158” x 150”
Tool HeadTriple Interchangeable Tool Head
CameraIndustrial 3.1Mpixel
Vacuum System16 Zone (20 kWatt)
Rapid Speed41.6 IPS/63.5 m/min
Acceleration.52 G
Bridge Clearance4.0”
Max. Cutting Thickness2.5”
Recommended Floor Space19' x 19'
Machine Weight5,400 lbs
