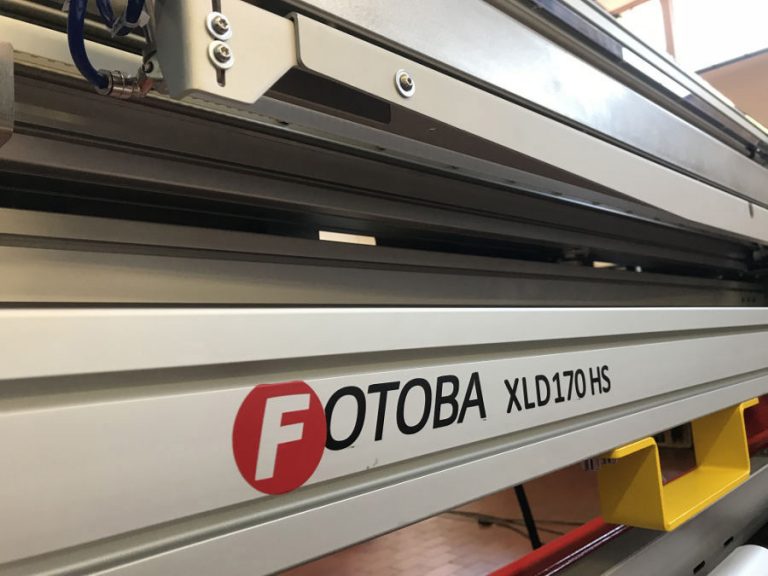

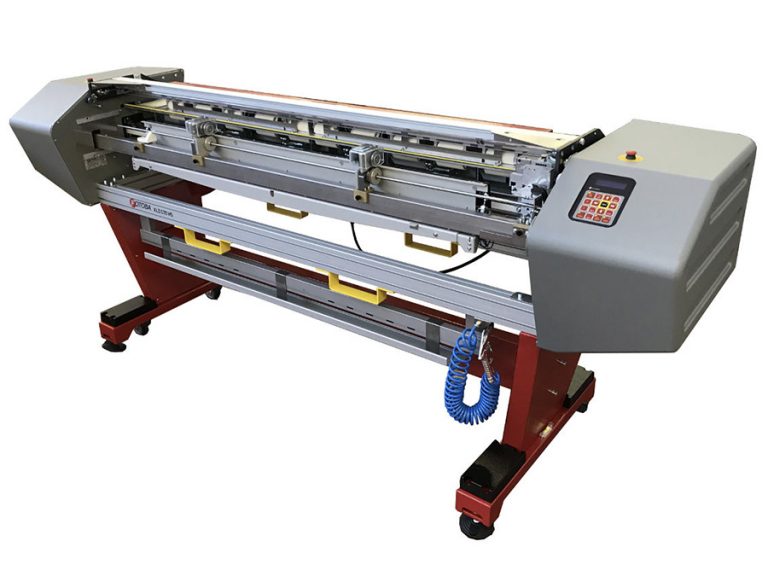

XLD 170 HS

Doubles the speed of the XLD 170 model


The XLD170HS doubles the speed of the XLD Standard models. There are two versions:

  • XLD170HS with Double cut in one pass (patented) to reduce even more the cutting time when cutting small sizes. This version but it is recommended for paper cutting only.
  • XLD170HS with Double cut in two passe. It is the perfect solution to trim all the flexible media output up to 1,7 mt/67in in the fastest turnaround time.

Bothe models have all features same as the XLD models and can be added of all accessories as the standard line.

  • Self squaring to the edge of the image (X)
  • Automatic tracking to the image edge (Y)
  • Max linear speed 50-ft per minute

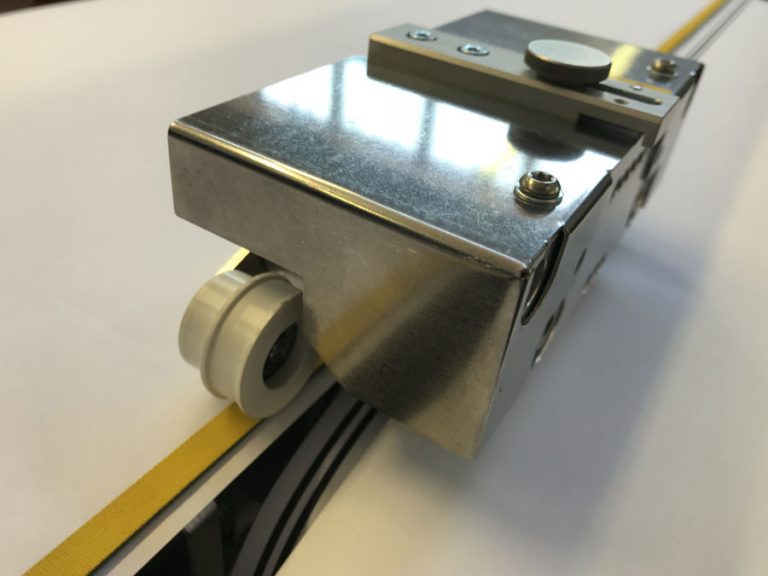

  • Vertical Slitters: Single, 8mm double or adjustable double
  • Cutting by length & quantities for media conversion
  • Memory channels to store different cut marks
  • All mechanism controlled by stepper motors
  • Automatic scanning of the cut marks
  • Accuracy +/- 0.5 mm (0.02 in.)
  • Max. Linear Speed 100-ft per minute

FOTOBA CUTMARKS are embedded in most popular RIP softwares.

The XL Series can handle media with a maximum thickness of 40 mil including polycarbonate, laminates and encapsulated media, photo paper, vinyl, self-adhesive vinyl, graphic arts film, duratrans, canvas and much more.


Automatic In-Line Rewinding Solutions for non-stop production.

Motorized Roll Feeder

Can easily hold 660 lbs.

Request Live Demo

Request Live Demo

Provide contact information below for a live demo.
Price Inquiry

Request for Price

Provide contact information below for pricing information.

Technical Specification

Max paper width: 170cm/67in.

Min paper width: 28cm/11in.

Max roll diameter allowed: 26cm/10in.

Max cutting thickness: 1mm (0.04 inch)

Feeding speed: 100 ft. per min.

X cutting accuracy: 1mm (0.04 inch)

Y cutting accuracy: 1mm (0.04 inch)

Net Weight: 650 lbs.

Dimensions: 110″ x 36″ x 44″
