You Print We cut

Inline Cutting

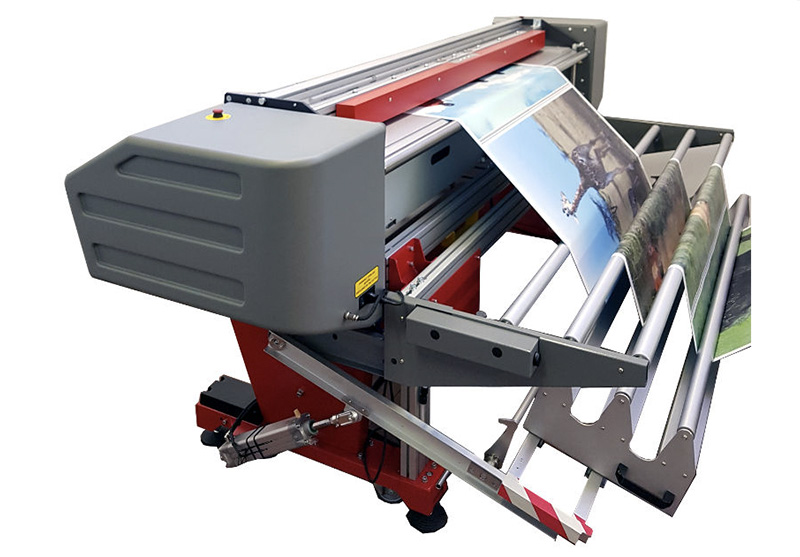

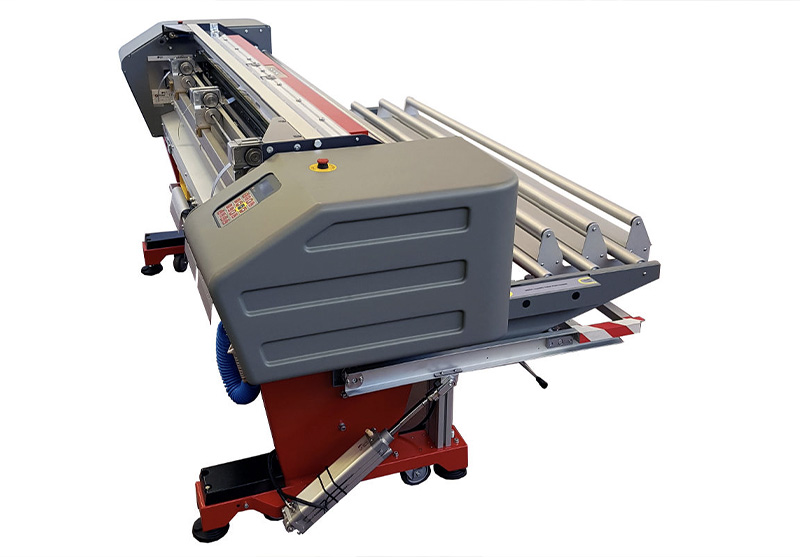

The XLE/XLD series can be set in line to any printer by means of a pneumatically controlled buffer.

FOTOBA Inline Cutting

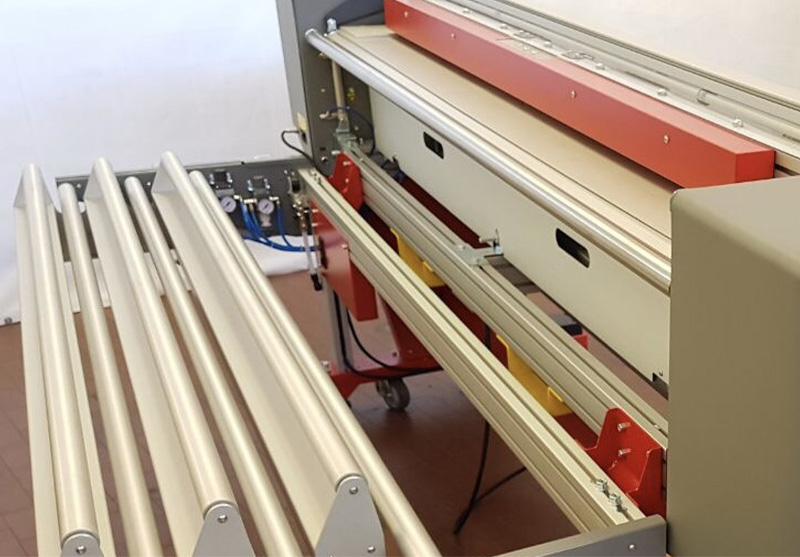

While the printer is plotting, the buffer accumulates the media controlling the action of the cutter.

It is available for all XLD cutters independently from speed and width.

With this device, it is possible to reduce the workflow to a single process. The file is sent to the printer and the job is ready for delivery right after.

Fotoba Inline Cutting

  • Automatic tracking to the image edge (Y)
  • Max linear speed 50-ft per minute

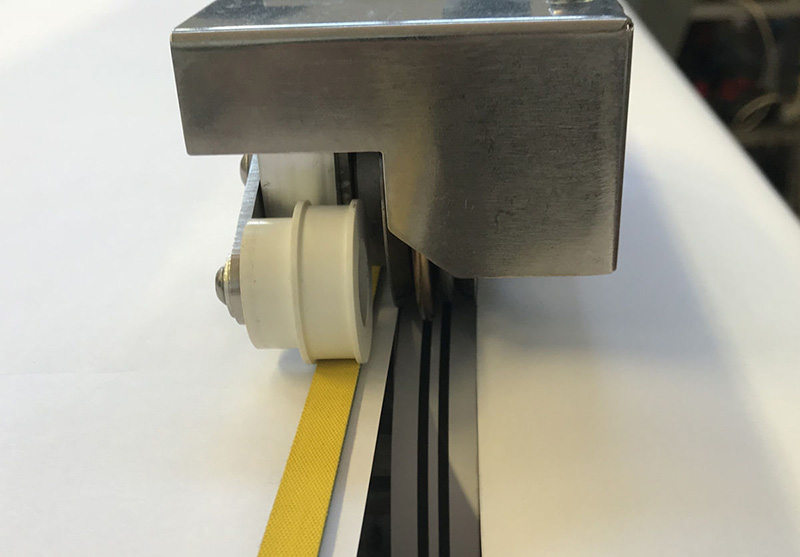

  • Vertical Slitters: Single, 8mm double or adjustable double
  • Cutting by length & quantities for media conversion
  • Memory channels to store different cut marks
  • All mechanism controlled by stepper motors
  • Automatic scanning of the cut marks
  • Accuracy +/- 0.5 mm (0.02 in.)
  • Max. Linear Speed 50-ft per minute

FOTOBA CUTMARKS are embedded in most popular RIP softwares.

The XL Series can handle media with a maximum thickness of 40 mil including polycarbonate, laminates and encapsulated media, photo paper, vinyl, self-adhesive vinyl, graphic arts film, duratrans, canvas and much more.

Rewinding

Automatic In-Line Rewinding Solutions for non-stop production.

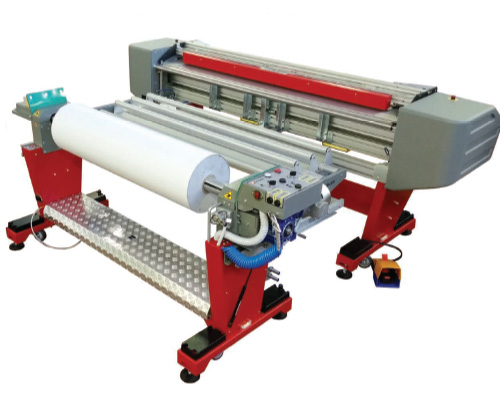

Motorized Roll Feeder

Can easily hold 660 lbs.

Request Live Demo

Request Live Demo

Provide contact information below for a live demo.
Price Inquiry

Request for Price

Provide contact information below for pricing information.

Technical Specification

Max paper width: 170cm/67in.

Min paper width: 28cm/11in.

Max cutting thickness: 1mm (0.04 inch)

Feeding speed: 50-100 ft. per min.

X cutting accuracy: 1mm (0.04 inch)

Y cutting accuracy: 1mm (0.04 inch)

Net Weight: 550 lbs.

Dimensions: 110″ x 36″ x 44″
