XLD 170

The XLD 170 is a high performance fully automatic cutter

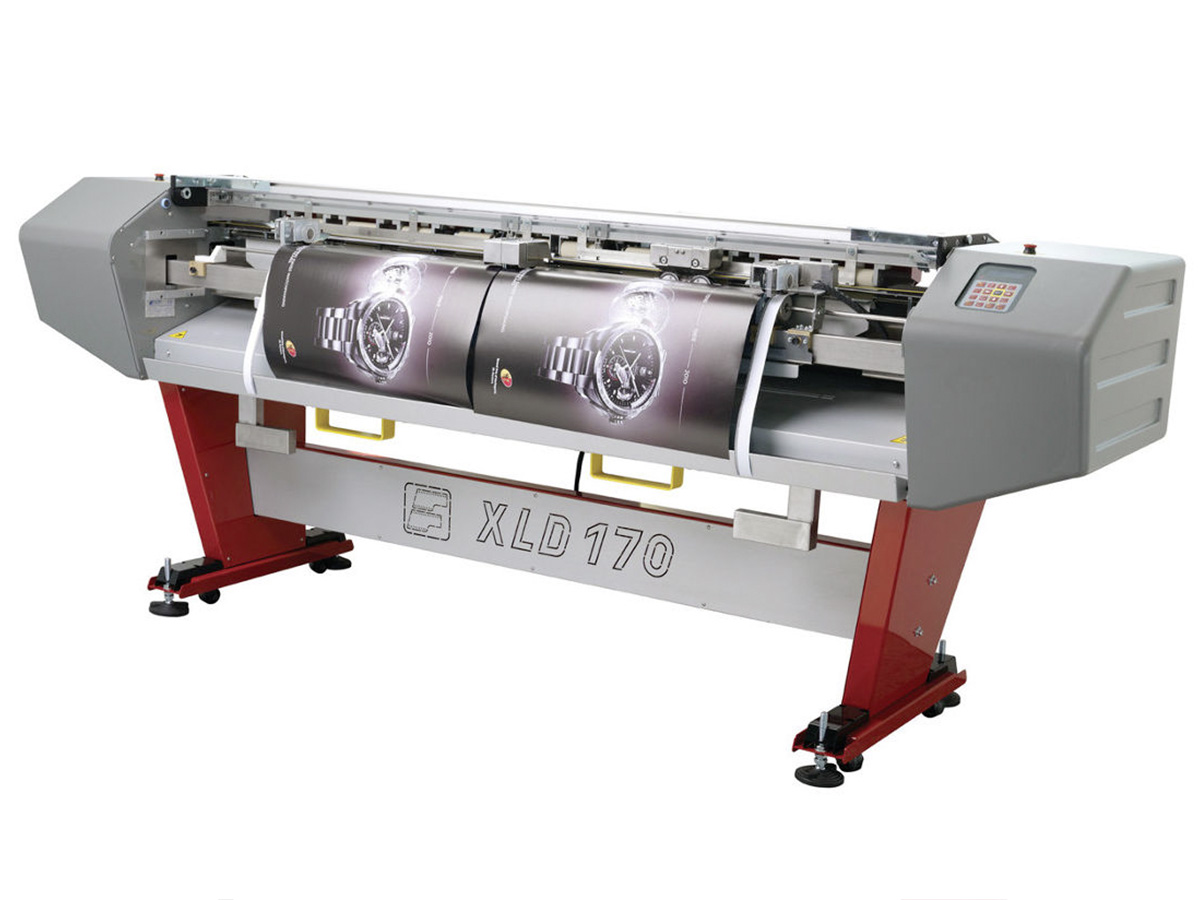

FOTOBA XLD-170 DIGITAL CUTTER

The new Dreamcut XLD-170 is the most versatile of all FOTOBA cutters. Designed to work with both ROLLS and SHEETS, it is the perfect solution to trim all flexible media output up to 67 inches wide and 35 mil thick.

Regardless of any feed misalignment, the Dreamcut XLD-170 will automatically realign itself to the edge of the printed image. The Dreamcut XLD-170 will always produce square finished images even if the printer fails to print parallel to the media edge or if the printer fails to wind up the rolls squarely (telescoping).

The Dreamcut XLD-170 uses the FOTOBA cut marks that are standard in all popular RIP software. It is capable of handling the output of several printers and is the ideal companion to all new fast printers including 5 meter/16 feet machines printing three 60 inch rolls simultaneously.

The Dreamcut XLD-170 cutters can handle flexible media up to a maximum thnickness of 0.8 mm (35 mil) including polycarbonate, photo paper, vinyl, self-adhesive vinyl, PVC, film, duratrans, TDF, canvas, laminated or encapsulated prints and much more.

It cuts a 150 foot roll in under 15 minutes!.

  • Self squaring to the edge of the image (X)
  • Automatic tracking to the image edge (Y)
  • Max linear speed 50-ft per minute

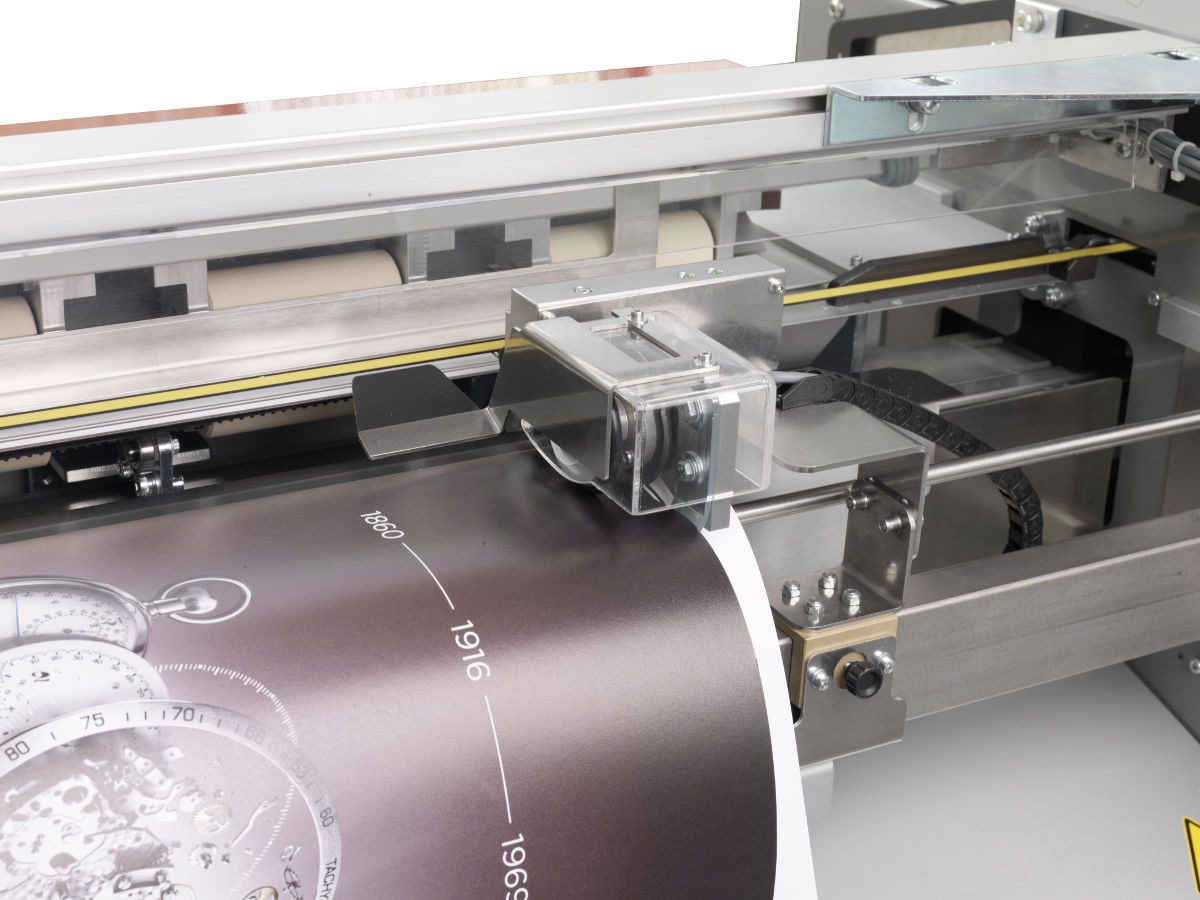

  • Vertical Slitters: Single, 8mm double or adjustable double
  • Cutting by length & quantities for media conversion
  • Memory channels to store different cut marks
  • All mechanism controlled by stepper motors
  • Automatic scanning of the cut marks
  • Accuracy +/- 0.5 mm (0.02 in.)
  • Max. Linear Speed 50-ft per minute

FOTOBA CUTMARKS are embedded in most popular RIP softwares.

The XL Series can handle media with a maximum thickness of 40 mil including polycarbonate, laminates and encapsulated media, photo paper, vinyl, self-adhesive vinyl, graphic arts film, duratrans, canvas and much more.

Rewinding

Automatic In-Line Rewinding Solutions for non-stop production.

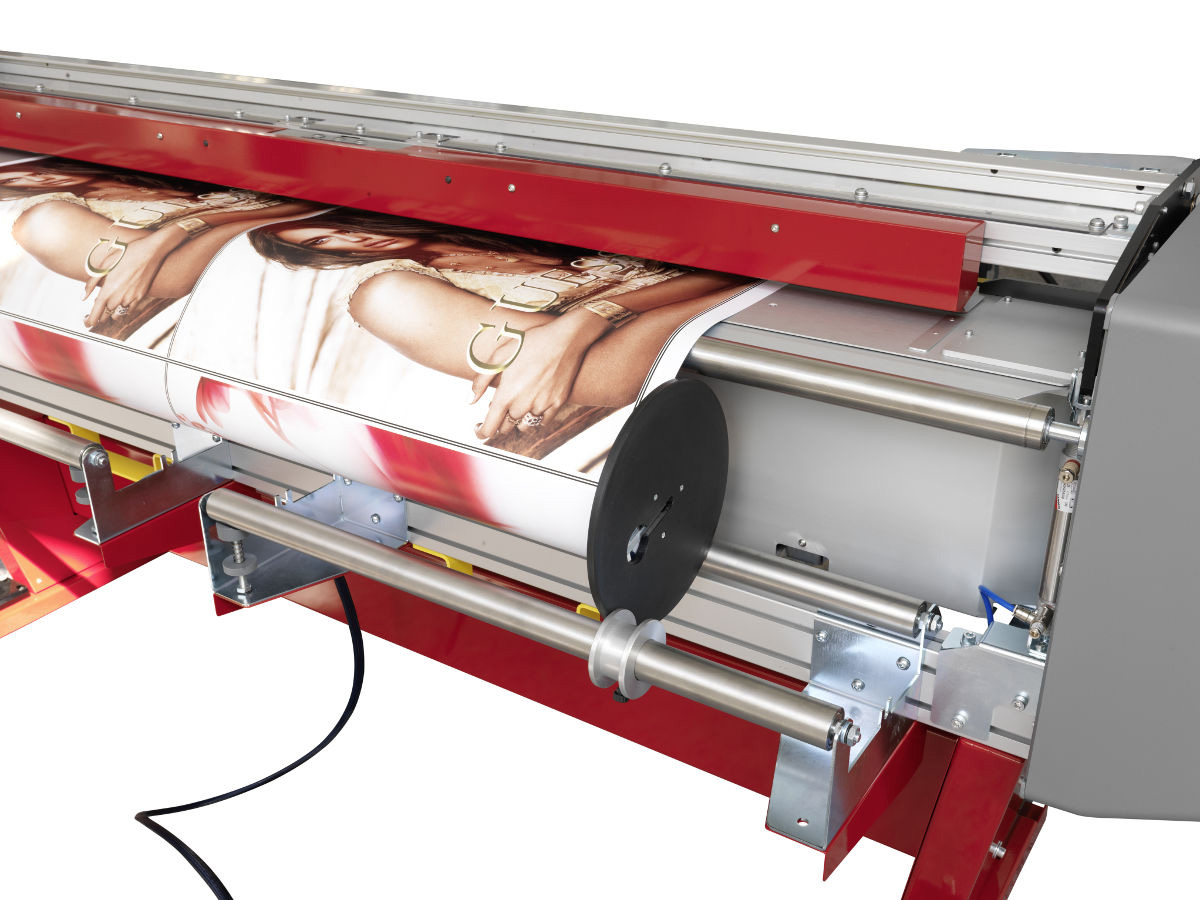

Motorized Roll Feeder

Can easily hold 660 lbs.

Request Live Demo

Request Live Demo

Provide contact information below for a live demo.
Price Inquiry

Request for Price

Provide contact information below for pricing information.

Technical Specification

Max paper width: 170cm/67in.

Min paper width: 28cm/11in.

Max roll diameter allowed: 26cm/10in.

Max cutting thickness: 1mm (0.04 inch)

Feeding speed: 50 ft. per min.

X cutting accuracy: 1mm (0.04 inch)

Y cutting accuracy: 1mm (0.04 inch)

Net Weight: 550 lbs.

Dimensions: 110″ x 36″ x 44″
