You Print We cut

XLD 170 WP

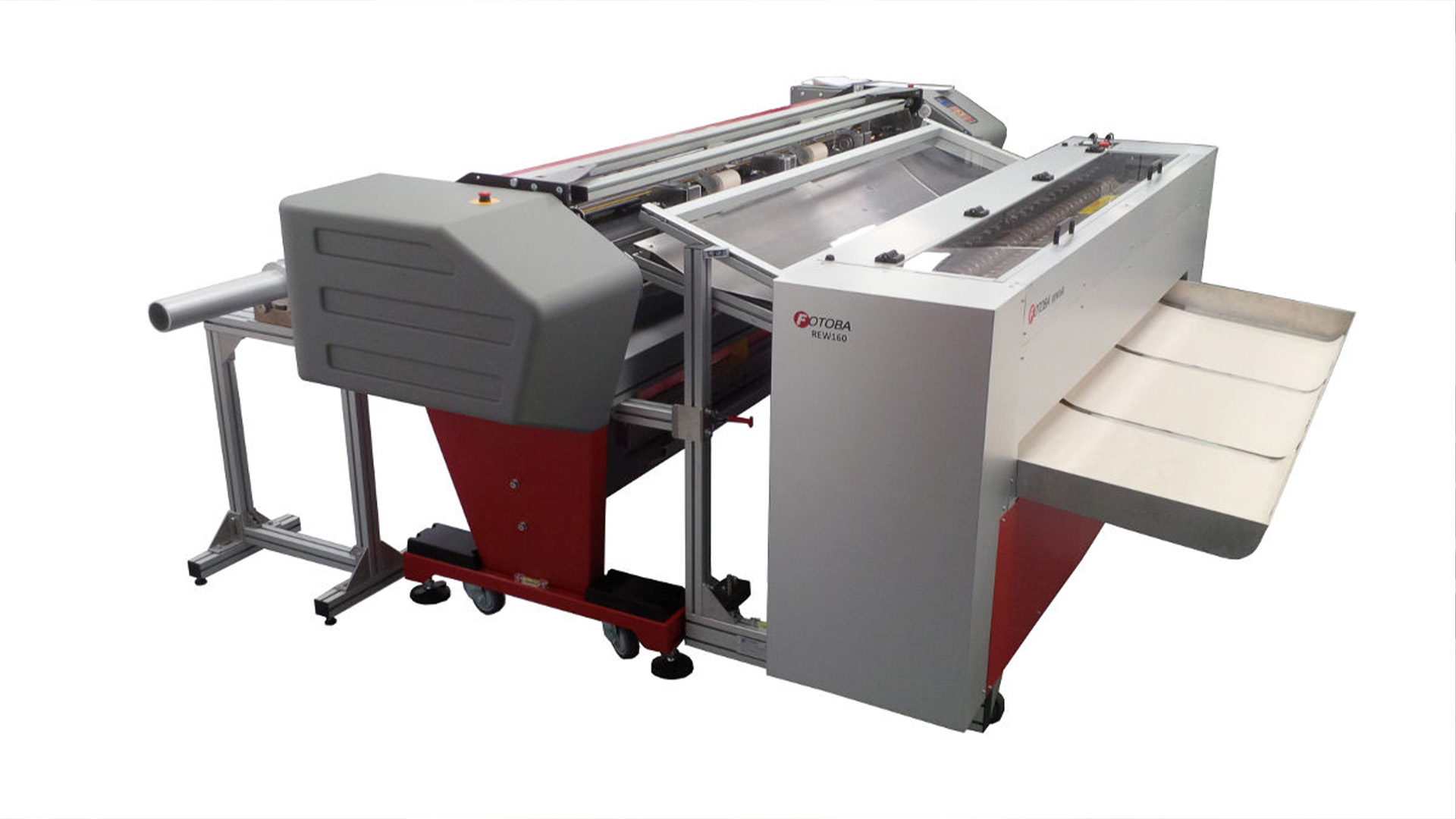

The new Dreamcut XLD-170 is the perfect solution for cutting tiles of wall paper with extremely high accuracy to enable side by side wall application. The side sensor correction can perform an accuracy of up to 0,065mm (.002-inches) producing high precision cutting. Fotoba XL Automatic Cutters are designed to work with both rolls and sheets and can handle all flexible media up to a maximum thickness of 40 mil.

The Dreamcut XLD-170 is capable of handling the output of several printers. It is the ideal companion to the new fast printers including 5 meter/16 foot machines printing three 60” rolls simultaneously.

It cuts a 150 foot roll in under 10 Minutes!

  • Self squaring to the edge of the image (X)
  • Automatic tracking to the image edge (Y)
  • Max linear speed 50-ft per minute
  • Vertical Slitters: Single
  • Optional manual length entry
  • Memory channels to store different cut marks
  • All mechanism controlled by stepper motors
  • Automatic scanning of the cut marks
  • Self sharpening blade system
  • Accuracy: X +/- 0.5 mm (0.02 in.) and Y +/- 0.06mm(0.002 in)

FOTOBA CUTMARKS are embedded in most popular RIP softwares.

The XL Series can handle media with a maximum thickness of 40 mil including polycarbonate, laminates and encapsulated media, photo paper, vinyl, self-adhesive vinyl, graphic arts film, duratrans, canvas and much more.


Automatic In-Line Rewinding Solutions for non-stop production.

Motorized Roll Feeder

Can easily hold 660 lbs.

Request Live Demo

Request Live Demo

Provide contact information below for a live demo.
Price Inquiry

Request for Price

Provide contact information below for pricing information.

Technical Specification

Max paper width: 170cm/67in.

Min paper width: 28cm/11in.

Max roll diameter allowed: 26cm/10in.

Max cutting thickness: 1mm (0.04 inch)

Feeding speed: 50 ft. per min.

X cutting accuracy: 0.5mm (0.02 inch)

Y cutting accuracy: 0.06mm (0.002 inch)

Net Weight: 650 lbs.

Dimensions: 110″ x 36″ x 44″
