Coreless Rewinder 162

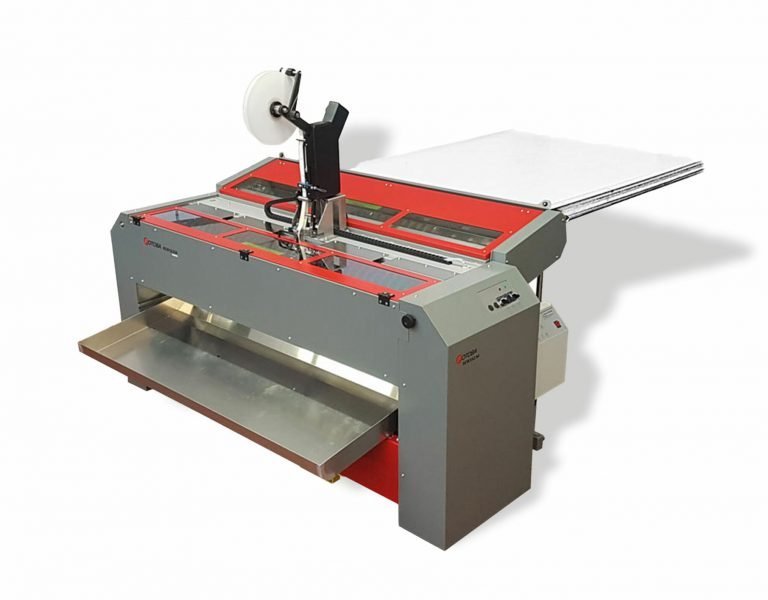

The REW 162 is a coreless rewinder which enhances automation on rewinding applications for two different solutions:

Inline with XL series to create fully automated finishing workflow for rolling up to three rolls at the same time with a minimum length of 800mm (shorter lengths must be tested and approved with customer material).

Offline as a stand-alone system to create core-less rolls from sheets manually fed. It can be adapted to fit a minimum size of A4 (on request). The REW162 is capable of rolling one sheet or multiple sheets on the same roll with Multi function. It can handle up to a 12cm diameter roll and a maximum 9Kg roll weight and can also be accessorized with up to three labelers (optional) to make sure the roll tension is consistent through all the finishing process.

  • 4” Max-Roll Diameter
  • Multi Panel
  • Can be installed in-line with cutter or freestanding

Optional Add-Ons

  • Labeling machine for easier and more efficient shipping results. The label applicator prevents unwinding of rolls.
  • Multi-Tile/Sheet System: Can wind up multiple tiles/sheets on the same roll automatically for more efficient logistics.

Technical Specification

Max cutting width: 165 cm – 64 in.

Feeding speed: 34 mt/min max

Max winded-up roll diameter: 9 cm / 8 kg up to two rolls simultaneously

Winding accuracy: ± 3 mm

Net Weight: 254 kg

Gross Weight: 440 kg

Dimensions: 215 x 140 x 109 h

Shipping Dimensions: 240 x 125 x 150 h
